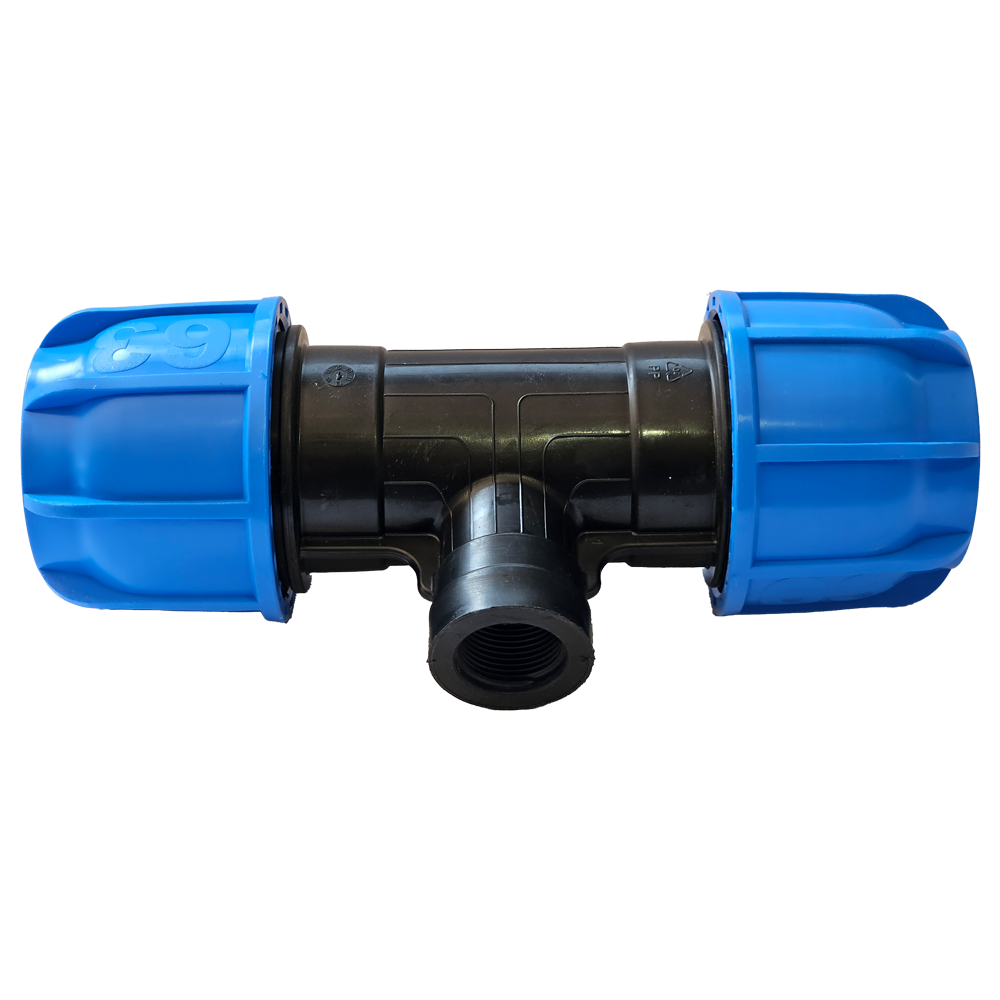

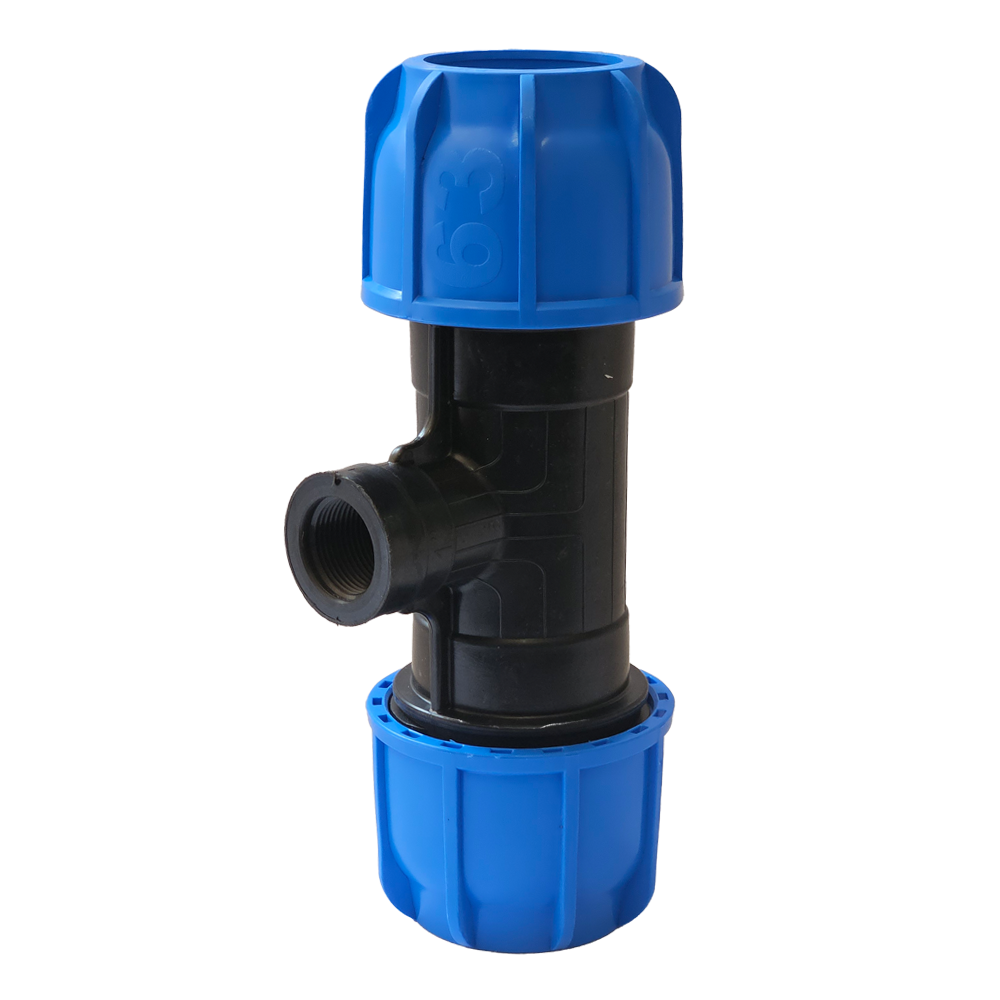

FEMALE TEE
-Our European Registration Certificated New Generation Compression Fittings saves time and labor force with the advantage of being mounted to the pipe without disassembling (without removing the nut).
-Thanks to its PCT Patent Certificated conical tightening and sealing features, it prevents any problem may occur due to size differences in pipe diameters up to ± 0.5 mm or ovality.
-We have production in all diameters in the range of Ψ20 mm – Ψ110 mm.
-The recommended operating pressure is PN 16.
| Product Code | Diameter (d x G) | Bag | Box B-2 |
| 110-020-16001-16 | 20 x ½ x 20 | 30 | 300 |
| 110-020-16002-16 | 20 x Ύ x 20 | 30 | 300 |
| 110-025-16005-16 | 25 x ½ x 25 | 20 | 160 |
| 110-025-16006-16 | 25 x Ύ x 25 | 20 | 160 |
| 110-025-16007-16 | 25 x 1 x 25 | 20 | 160 |
| 110-032-16011-16 | 32 x ½ x 32 | 20 | 100 |
| 110-032-16012-16 | 32 x Ύ x 32 | 20 | 100 |
| 110-032-16013-16 | 32 x 1 x 32 | 20 | 100 |
| 110-032-16014-16 | 32 x 1 Ό x 32 | 20 | 100 |
| 110-040-16020-16 | 40 x Ύ x 40 | 10 | 60 |
| 110-040-16021-16 | 40 x 1 x 40 | 10 | 60 |
| 110-040-16022-16 | 40 x 1 Ό x 40 | 10 | 60 |
| 110-040-16023-16 | 40 x 1 ½ x 40 | 10 | 60 |
| 110-050-16030-16 | 50 x Ύ x 50 | 4 | 36 |
| 110-050-16031-16 | 50 x 1 x 50 | 4 | 36 |
| 110-050-16032-16 | 50 x 1 Ό x 50 | 4 | 36 |
| 110-050-16033-16 | 50 x 1 ½ x 50 | 4 | 36 |
| 110-050-16035-16 | 50 x 2 x 50 | 4 | 36 |
| 110-063-16043-16 | 63 x 1 x 63 | 4 | 24 |
| 110-063-16044-16 | 63 x 1 Ό x 63 | 4 | 24 |
| 110-063-16045-16 | 63 x 1 ½ x 63 | 4 | 24 |
| 110-063-16047-16 | 63 x 2 x 63 | 4 | 24 |
| 110-063-16049-16 | 63 x 2 ½ x 63 | 4 | 24 |
| 110-075-16059-16 | 75 x 2 x 75 | 2 | 12 |
| 110-075-16061-16 | 75 x 2 ½ x 75 | 2 | 12 |
| 110-075-16063-16 | 75 x 3 x 75 | 2 | 12 |
| 110-090-16077-16 | 90 x 2 ½ x 90 | 2 | 8 |
| 110-090-16079-16 | 90 x 3 x 90 | 2 | 8 |
| 110-090-16083-16 | 90 x 4 x 90 | 2 | 8 |
| 110-110-16093-16 | 110×2 ½x110 | 1 | 4 |
| 110-110-16095-16 | 110 x 3 x 110 | 1 | 4 |
| 110-110-16099-16 | 110 x 4 x 110 | 1 | 4 |
